Simaudio launches the MOON P-8 Reference Differential Dual-Mono Preamplifier

Posted by Admin on Monday, January 03, 2005 - 01:01 am:

Share | Create New | Reply | Edit

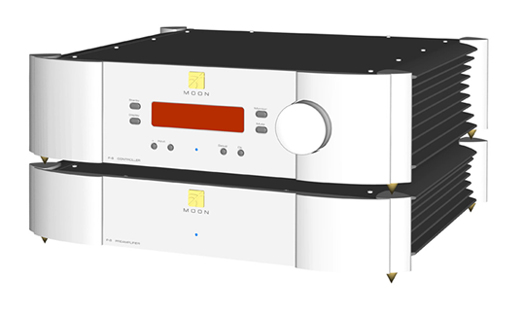

Simaudio Ltd. proudly introduces the MOON P-8 Preamplifier. A fully-balanced differential dual-mono design housed in 2 separate chassis, the P-8 is a masterpiece that produces absolutely no sonic colorations while loaded with numerous ergonomic features. This stupendous accomplishment is the result of a combination of extensive R&D yielding new proprietary technologies and the use of the very finest electronic parts available. To push the envelope even further, the MOON P-8 can be fully integrated into a custom-install environment and provides for a plethora of user selectable cosmetic options.

Significant Design Features:

• Two chassis design with the larger chassis housing the power supply, digital controller circuitry, software processing and the LCD displays. The smaller chassis contains ONLY audio circuitry.
• Full unsolicited RS-232 bidirectional feedback.
• Custom proprietary toroidal transformer design with lower magnetic, electrical and thermal loss, yielding an improved power transfer and lower regulation factor. The result is increased current speed and better dynamics.
• An oversized power supply with 6 stages of DC voltage regulation and choke filtering.
• M-Ray volume control circuit based on the R-2R resistor array configuration that uses metal film surface mount resistors with 0.1% tolerances. The result is no sonic degradation of the audio signal regardless of the selected volume setting.
• M-Lock circuit for “user selectable” maximum volume setting lock-out for each line input.
• Power supply voltage regulation includes I2DCf (Independent Inductive DC Filtering); 1 inductor for each and every chip (i.e. OpAmp, DAC, Digital Filter, etc.) in the audio circuit’s signal path – 36 stages in all.
• C4 Aesthetics: 24 end-user selectable cosmetics combinations: the MOON Logo can be chrome (standard), gold or pewter; leg cones can be chrome (standard) or gold; Front panel cheeks can be silver (standard) or black; Brushed/Anodized front face-plate can be silver or black.
• Individual “gain offset” for each individual line input with a ±10dB range.
• Each line input is fully configurable to be “home-theater ready”, where the gain section of the P-8 is bypassed.
• Open-loop, zero-feedback circuit topology using absolutely no capacitors anywhere in the audio signal path.
• Four-layer PCB tracings; 1 on top for ground plane, 1 on the bottom for power circuitry and 2 in middle for the audio signals. The advantages include better ground and power supply circuit layouts resulting in a much shorter signal path and dramatically improved signal-to-noise ratio.
• Extremely rigid chassis construction to minimize the effects of external vibrations.
• Accurate matching of the very finest quality electronic components in a symmetrical circuit design.

The MOON P-8 will have an MSRP of $9,500.00 USD.

Scheduled date of availability - February 2005
