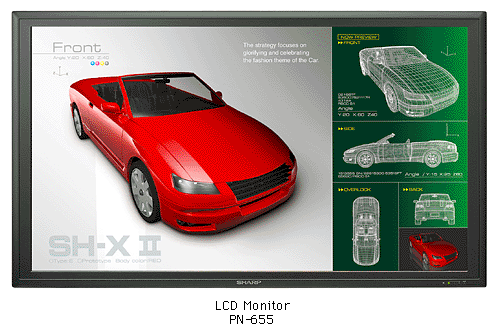

Sharp Introduces 65-inch LCD PN-655 HD Monitor
The World's Largest*1 Full-Spec High-Definition Commercial Monitor Offers Crisp, Detailed Image Presentation and Unparalleled Videoconference Imagery
Sharp will introduce into the Japanese market the PN-655 LCD Monitor made at the Kameyama Plant, which uses a 65V-inch full-spec high-definition LCD panel (resolution of 1,920x1,080 pixels).
The large 65V-inch screen brings images to life with its pure size. It also faithfully reproduces computer-generated images such as CAD data with impressively high-resolution and high quality right down to the finest details. And because it’s LCD, the PN-655 gives expressively colored images even in bright rooms and allows everyone in a meeting, no matter where they are sitting, to see the information on-screen with equal clarity. The high-definition videoconference function displays facial expressions with detail, so smooth, clear communication is possible wherever in the world you are. A wide range of interfaces means a wide range of networking possibilities, making the PN-655 a new, all-purpose business solution.
By commercializing large-screen, full-spec high-definition information monitors that reproduce high-resolution, high-quality images, Sharp will continue to establish LCD superiority in the commercial monitor market.
| Product name | LCD Monitor | | Model name | PN-655 | | Suggested retail price | Open | | Date of introduction in Japan | March 24, 2006 | | | | Major Features | | 1. | A 65V-inch high-resolution, full-spec high-definition LCD panel (resolution of 1,920 H x 1,080 V pixels) faithfully reproduces high-definition, high-quality digital images for CAD data and videoconferencing | | 2. | Employs a “dual fine engine,” which enables the display of both PC digital data and audio-visual images in full-spec high-definition. | | 3. | Uses "picture in picture" and "picture by picture" functions to display various image sources simultaneously. | | 4. | Strengthened functions for commercial use, such as a fanless design, remote control functions, and capability of around the clock operations. | | | | Specifications | | LCD panel | 65V-inch wide (163.9 cm diagonal) Advanced Super View low-reflection black TFT LCD | | Dot count | 1,920 H x 1,080 V pixels | | Max. colors | 16,770,000 colors (8 bit/color) | | Screen brightness | 400 cd/m2 | | Contrast ratio | 700:1 | | Viewing angle | Vertical: 170°, horizontal 170° (CR10) | | Screen size | 1,428 H x 804 V mm | | | | Computer input signal | | Video signal | Analog RGB (0.7Vp-p) [75 ohm], digital (DVI 1.0 standard-compliant) | | Sync signal | Horizontal/vertical separate (TTL: positive/negative), Sync-on-green, Composite sync (TTL: positive/negative) | | Video signal system | NTSC (3.58MHz) | | | | Functions | | Plug and play | VESA DDC2B | | Power management | VESA DPMS, DVI DMPM | | Automatic screen adjustment | Clock, phase, automatic screen adjustment (horizontal/vertical) | | Automatic gain control | Black level, contrast | | Screen enlargement | Digital scaling (revise and enlarge VGA, SVGA, XGA, SXGA screens to 1,920H x 1,080V) | | User adjustment | Clock, phase, screen adjustment (horizontal/vertical), black level, contrast, brightness, OSD
Color temperature (5 preset modes or user settings),display modes (including office mode) | | Sleep timer | 1 to 23 hours | | Reset all | Restores all settings to factory defaults | | Screen reset | Restores screen settings to factory defaults | | Lock function | Lock settings to prevent adjustments | | PinP, PbyP | PinP: displays picture-in-picture PbyP: displays split screen | | | | Input terminals*2 | | Computer signal | Digital: DVI-D 24 pin (1 line)
Analog: Mini D-sub 15 pin (1 line) | | Computer audio | ø 3.5 mm mini stereo jack (1 line) | | RS-232C | D-sub 9 pin (1 line) | | Composite video | BNC (1 line) | | Component | BNC (Y, Cb/Pb, Cr/Pr) (1 line) | | D4 video | D terminal (1 line) | | Audio | RCA pin (L/R) (1 line) | | | | Output terminals*2 | | Computer signal | DVI-D (1 line) | | Audio | RCA pin (L/R) (1 line) | | RS-232C | D-sub 9 pin (1 line) | | Speaker | 10W + 10W (6Ω) | | Wall mount bracket | Four screws (650-mm pitch, 440-mm width) (M10 screws) | | Power requirement | 100V AC, 50/60Hz | | Power consumption | 550W | | Operating temperature | 0°C to 40°C | | Operating humidity | 20% to 80% (no condensation) | | Dimensions (display) | Approx. 1,572 (W) x 126 (D) x 923 (H) mm (excluding protrusions) | | Weight | Approx. 65 kg (excluding stand) | | Dimensions/weight when packed | Approx. 1,720 (W) x 575 (D) x 1,290 (H) mm (Approx. 99 kg) | | Accessories | AC power cord (2 pin + ground cord) (Approx. 4m), remote control, AA battery for remote control (2), CD-ROM utility, operation manual, warranty | | Regulatory approvals | VCCI class A, PSE |
*1 As of February 16, 2006, for commercial-use LCD monitors.
*2 Uses commercially available connection cables for PC connections and imaging equipment. |
|
